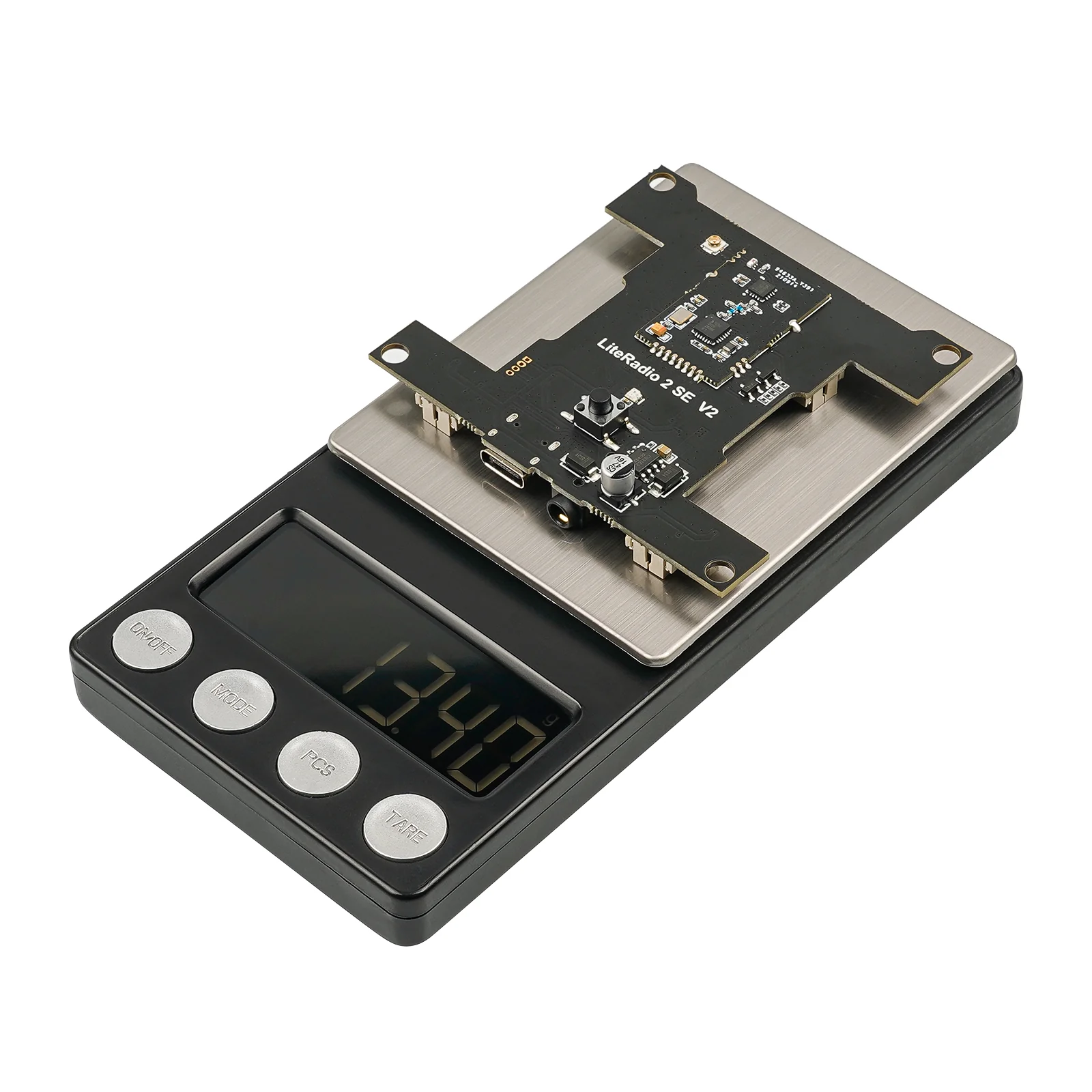

LiteRadio 2 SE Radio Transmitter Main Board

This is the main board of the LiteRadio 2 SE radio transmitter.  It is compatible with the remote controller case of all LiteRadio 2 and LiteRadio 2 SE. For the owner of this radio transmitter, geting this main board is the most budget way to try the most popular ExpressLRS 2.4G radio link protocol.

SPECIFICATIONS

• 8 channes in total
• Protocol ExpressLRS 2.4G
• RF power support 25mW, 50mW and 100mW
• Packet rate support 50Hz, 150Hz, 250Hz and 500Hz
• BETAFPV Configurator supported for updating and configuring
• USB joystick support for most practice simulator
• 1S battery supported and built-in charging circuit



DIAGRAM

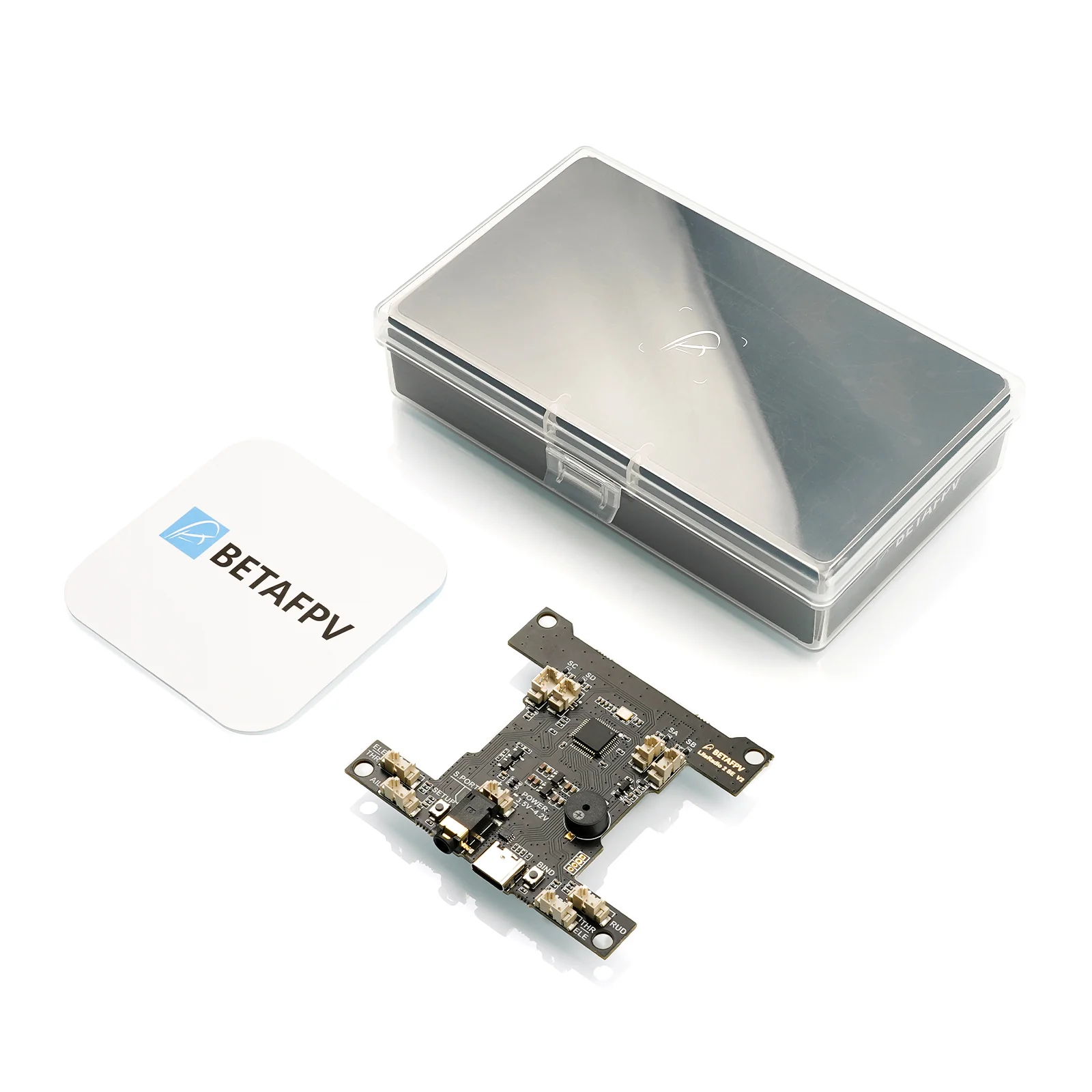

PACKAGE

• 1 * LiteRadio 2 SE Radio Transmitter Main Board
