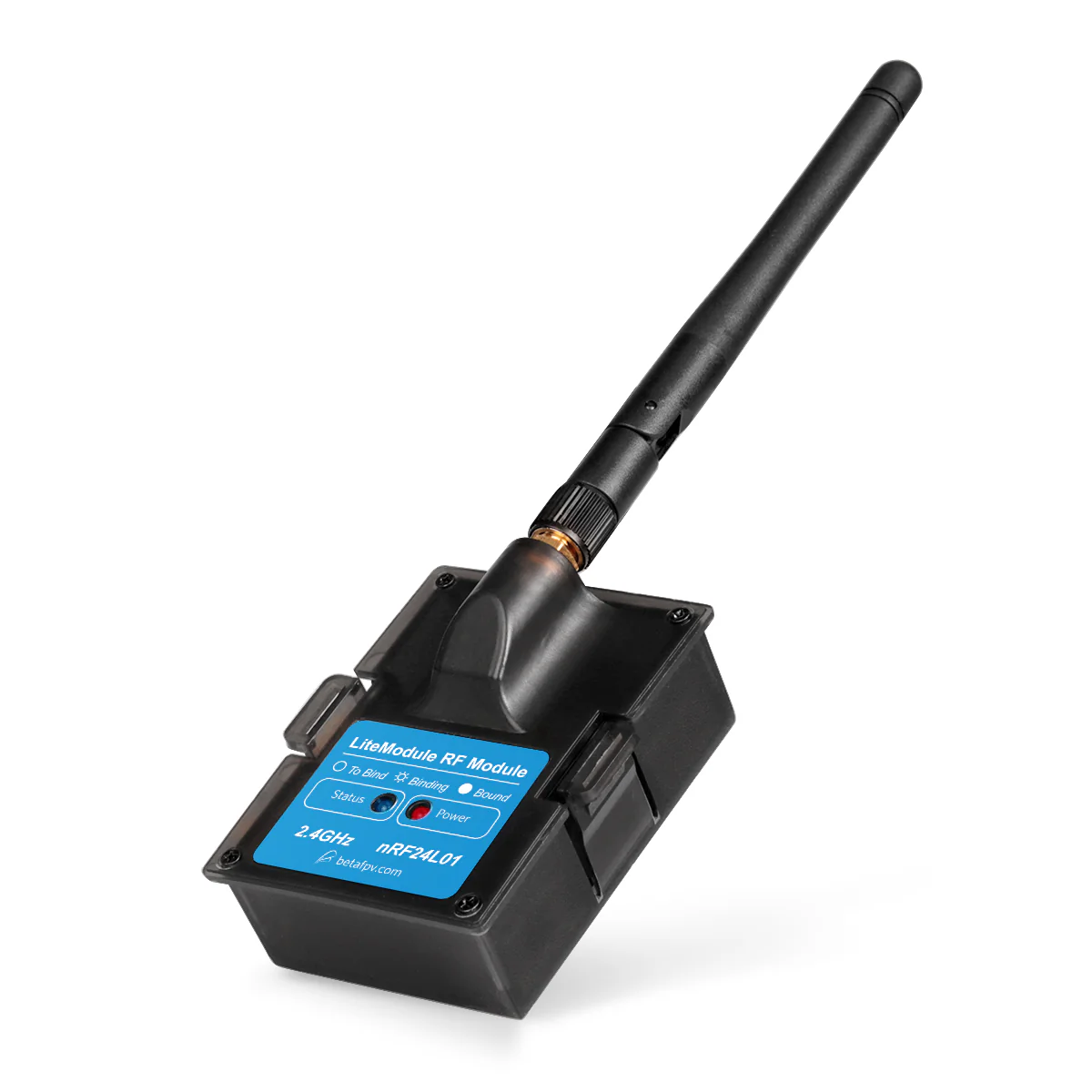

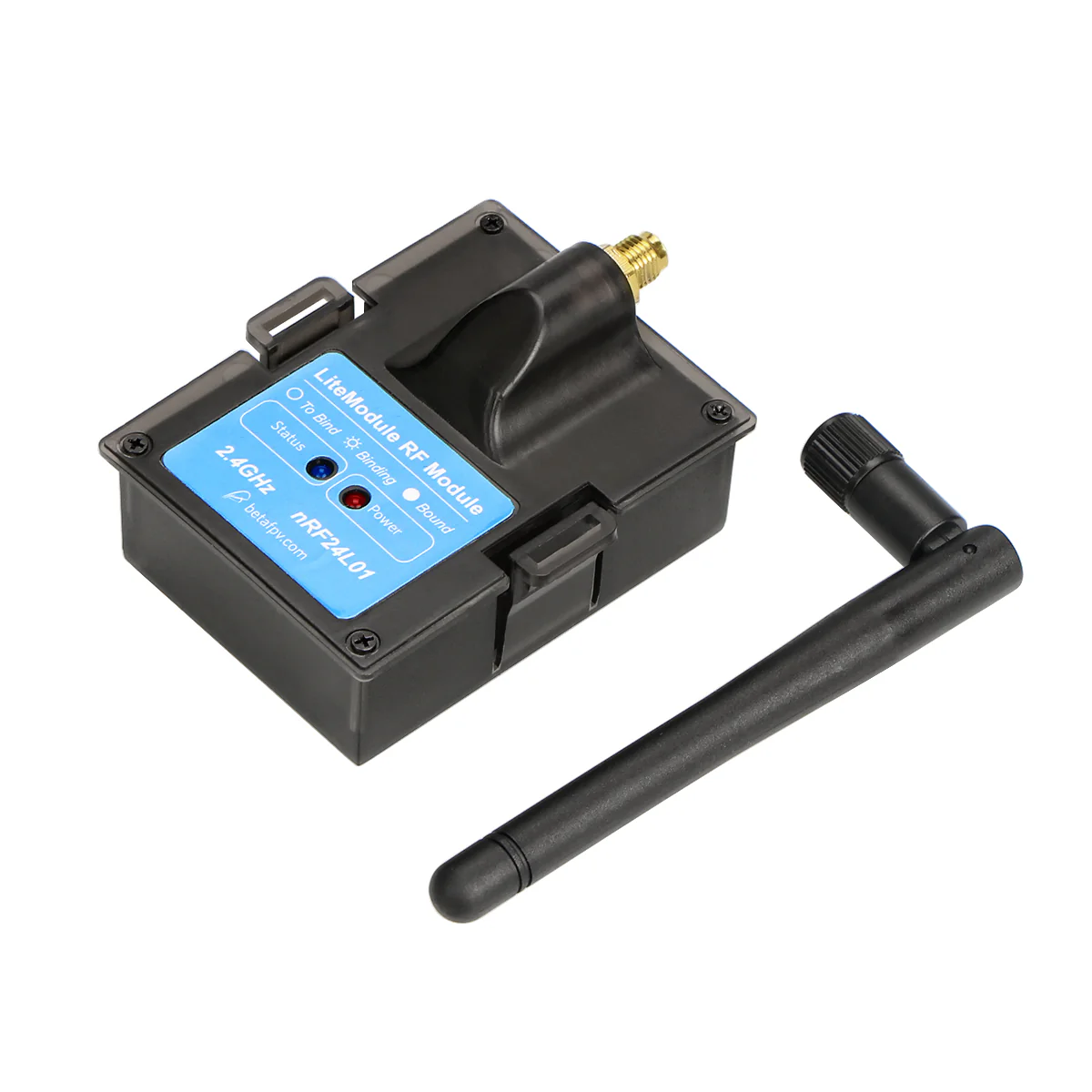

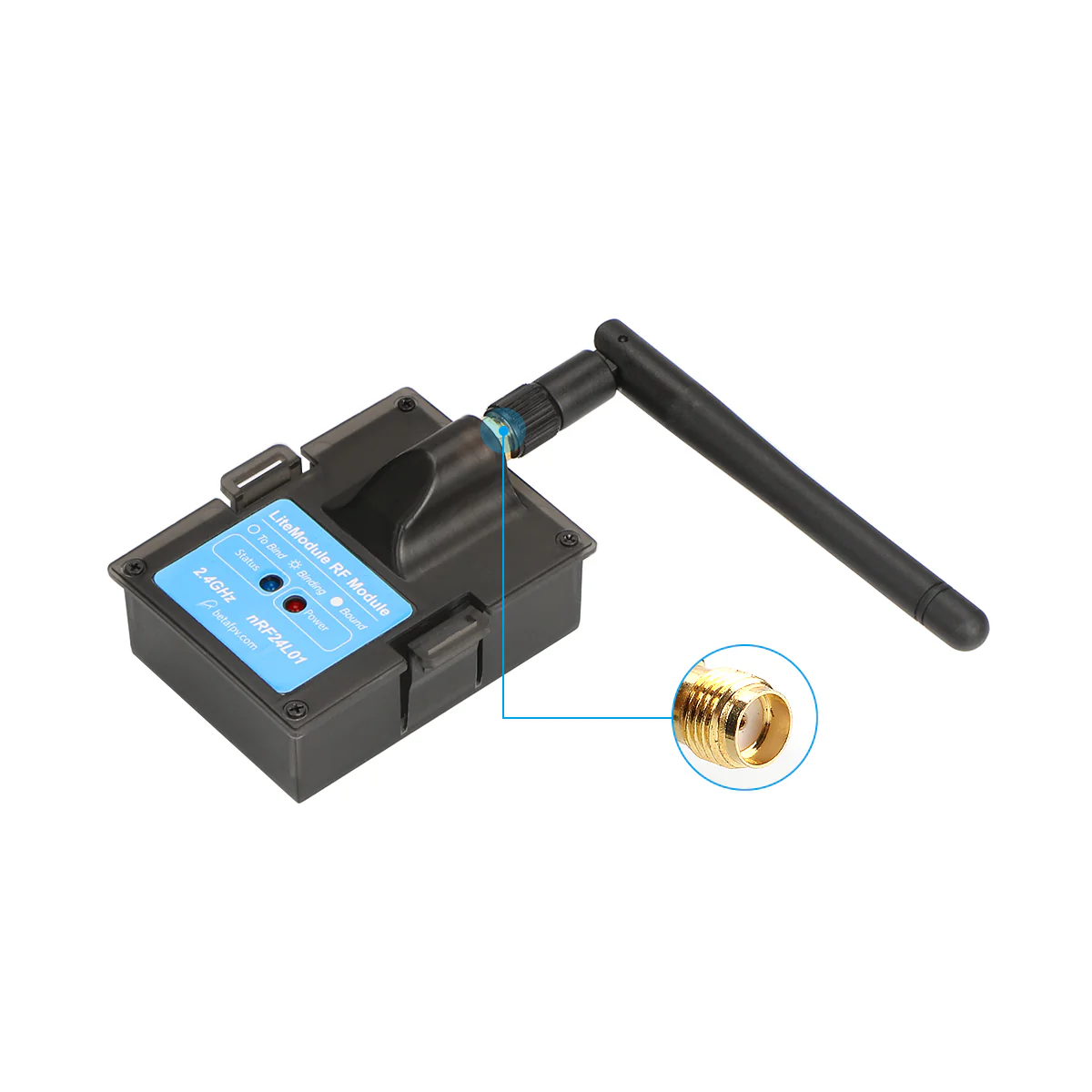

LiteModule RF Module (Bayang Protocol)

This RF Module is suitable for many toy quadcopters that use the Bayang protocol, like the BETAFPV Lite whoop drone. It is compatible with radio transmitters like Frsky X9D/X9D Plus/X12S, Flysky TH9X, Turnigy 9XR/9XR PRO, etc.

Only Bayang protocol is supported now.

Specification

• Signal frequency: 2400-2483.5Mhz
• Size:70*55*34mm(without antenna)

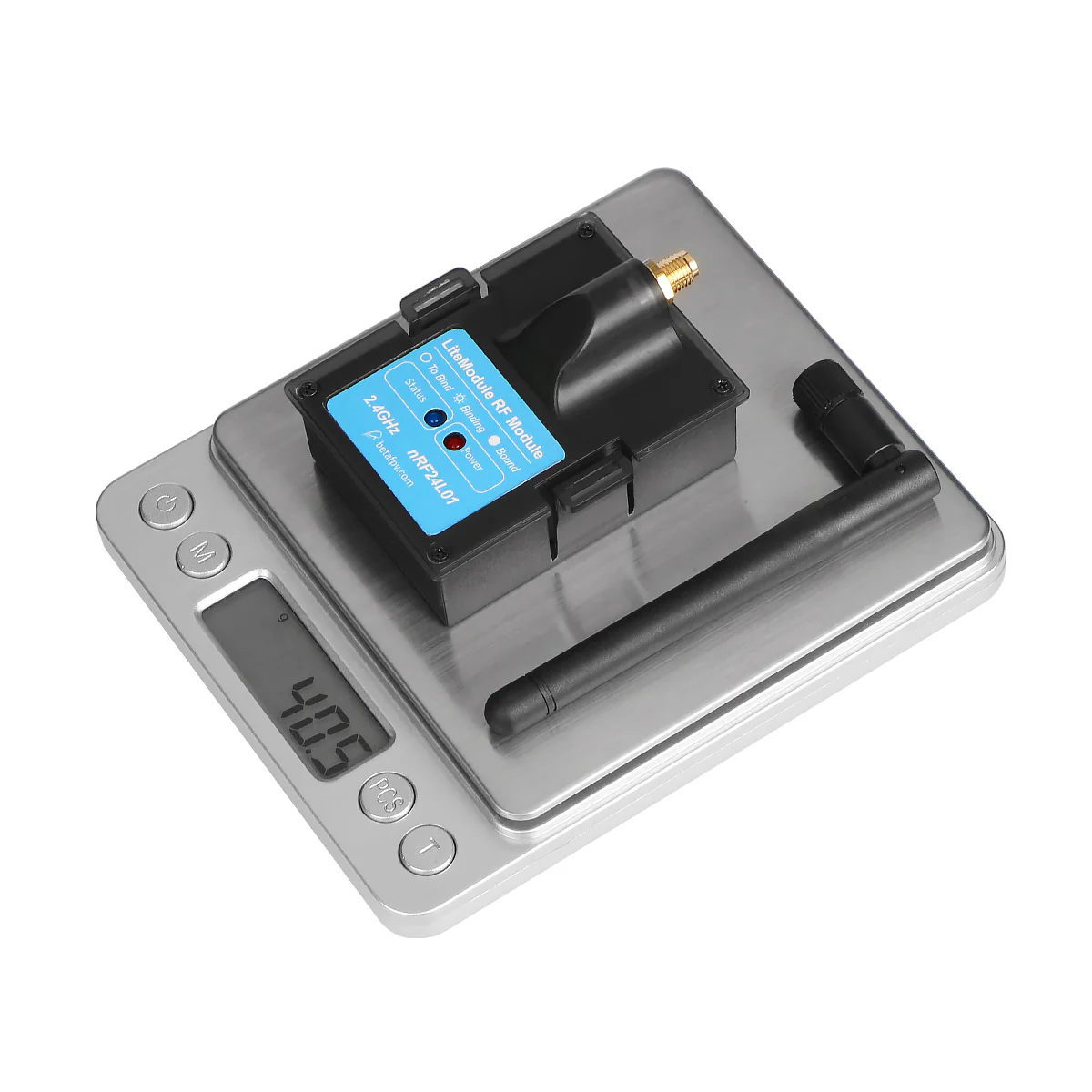

• Weight:40.12g
• Controllable range: > 300m
• Input voltage: 6V-13.5V
• Supported radio transmitter: Frsky X9D/X9D Plus/X12S, Flysky TH9X, Turnigy 9XR/9XR PRO
• Supported channel order: AETR
• Supported toy protocol: Bayang protocol

Binding Procedure

Here use the Frsky Taranis X9D Plus for example.

1. Create a model in OpenTX using the external module in PPM mode, 12 channels, and AETR sequence order.
2. Turn off Frsky Taranis X9D Plus.
3. Plug the LiteModule into the rear of the transmitter.

4. Power up the drone. Wait for it in the binding status.
5. Power up Frsky Taranis X9D Plus. Hold BOTH sticks DOWN and to the LEFT for 3 seconds. The blue LED is flashing slowly indicates that the module is in binding status. When bind successfully, the blue LED would be solid on. Now you could control your drone.

If you re-power your drone, like change the battery, you need to restart the LiteModule to re-do the binding procedure. Hold left stick DOWN and to the RIGHT, right stick DOWN and to the LEFT for 3 seconds to restart the LiteModule.

This Multiprotocol TX Module only supports remote control of AETR remote control channel order. The optimal system is Opentx/ER9X. But JR and TAER remote control channel order is not available now.

Package

• 1 * LiteModule RF Module (Bayang Protocol)

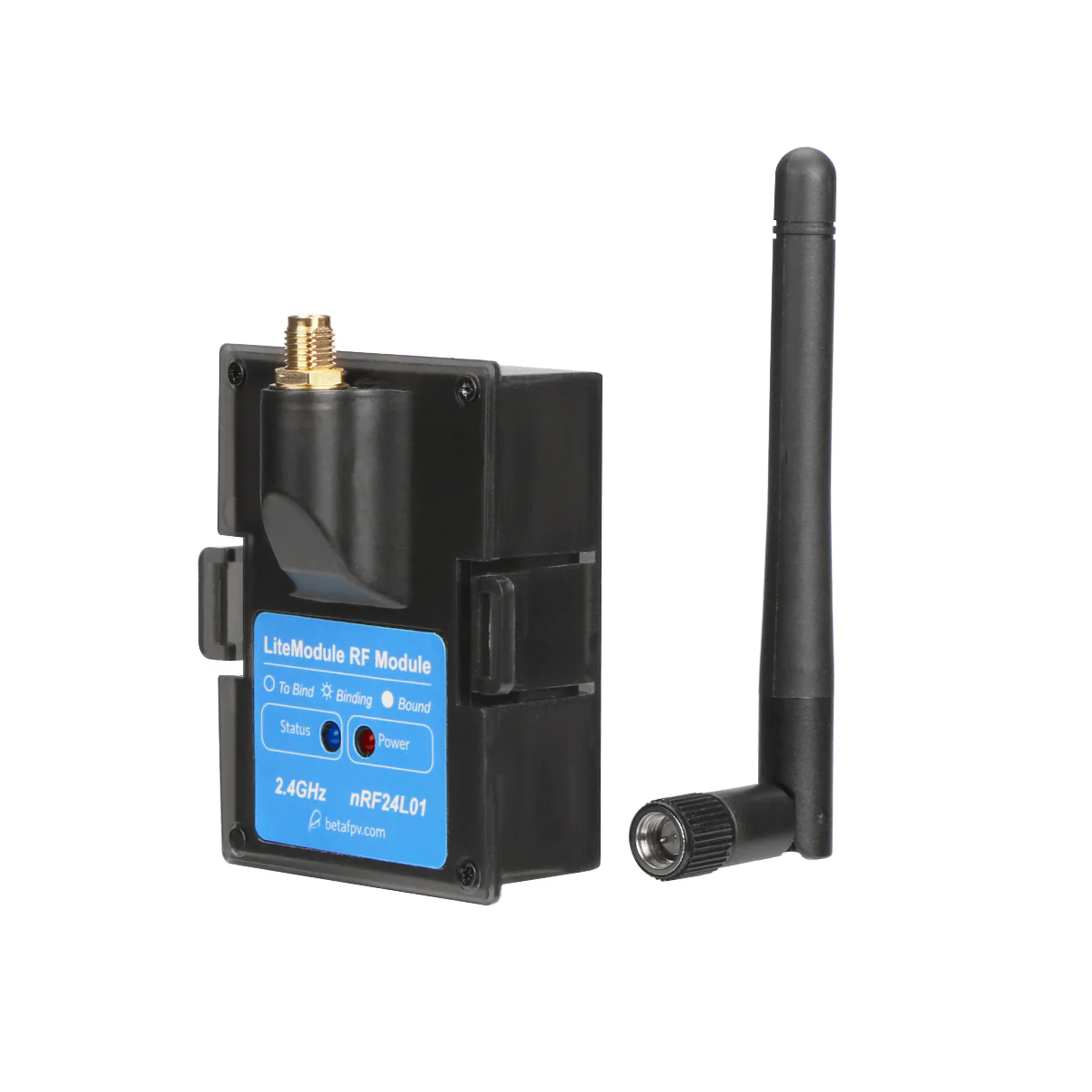

• 1 * Whip Antenna
