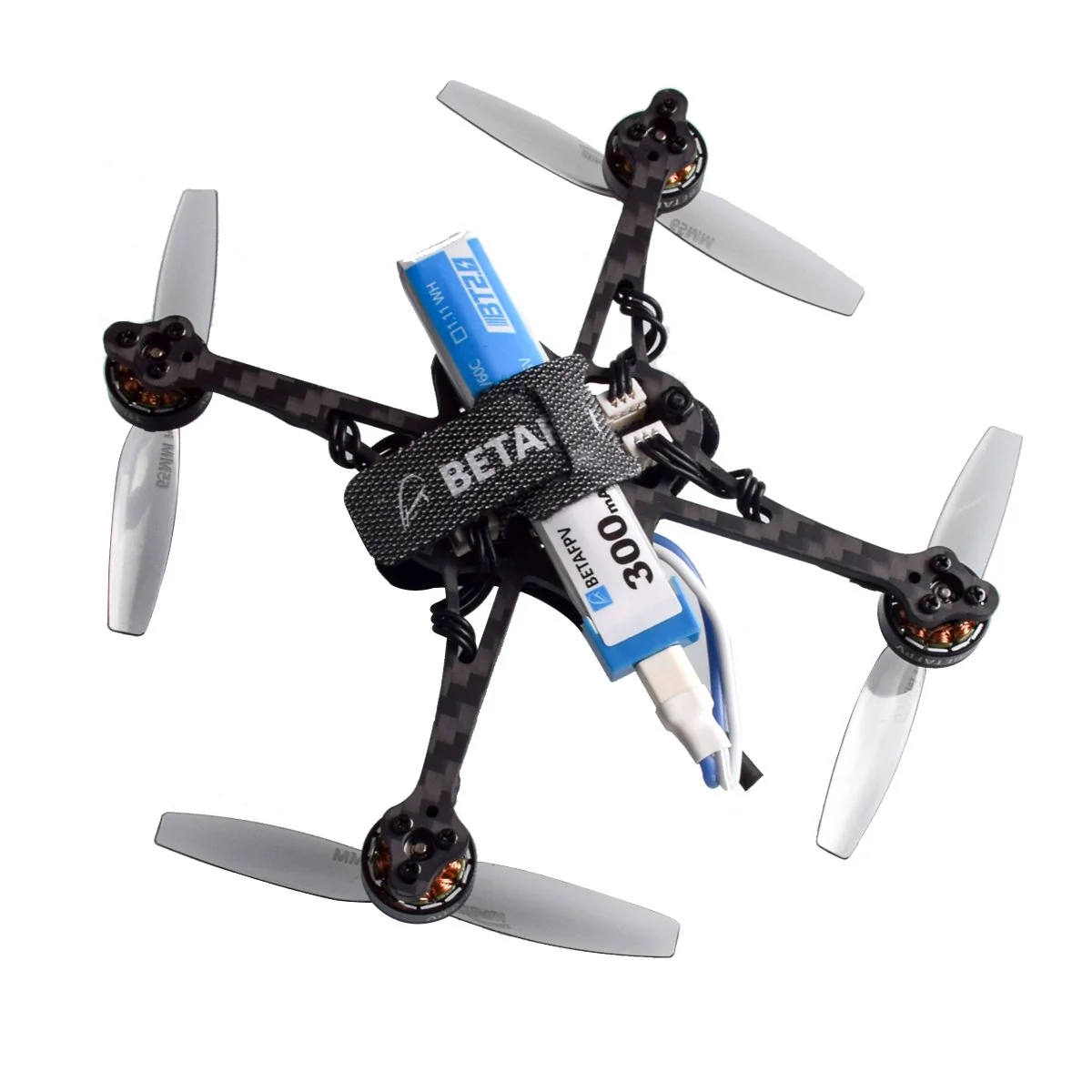

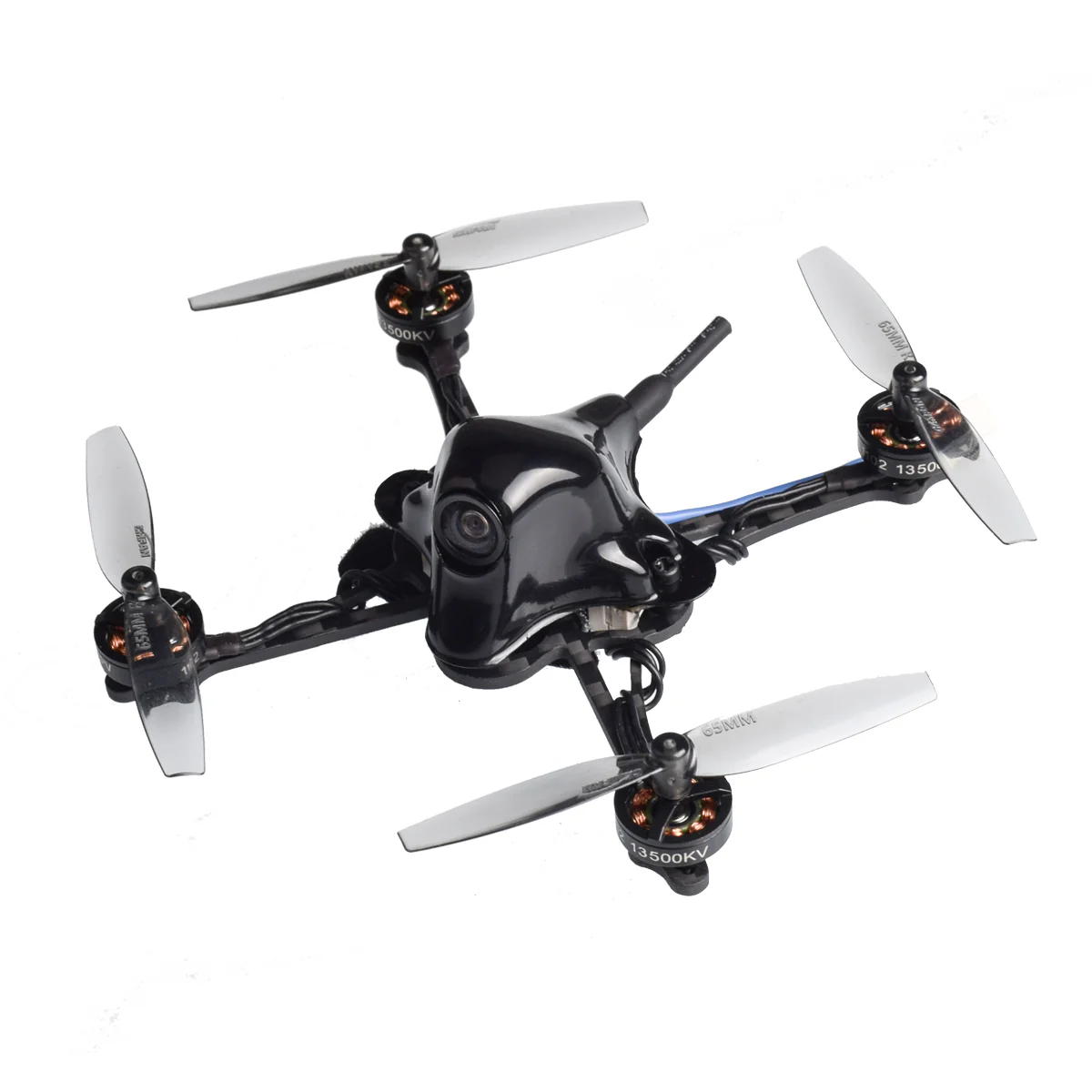

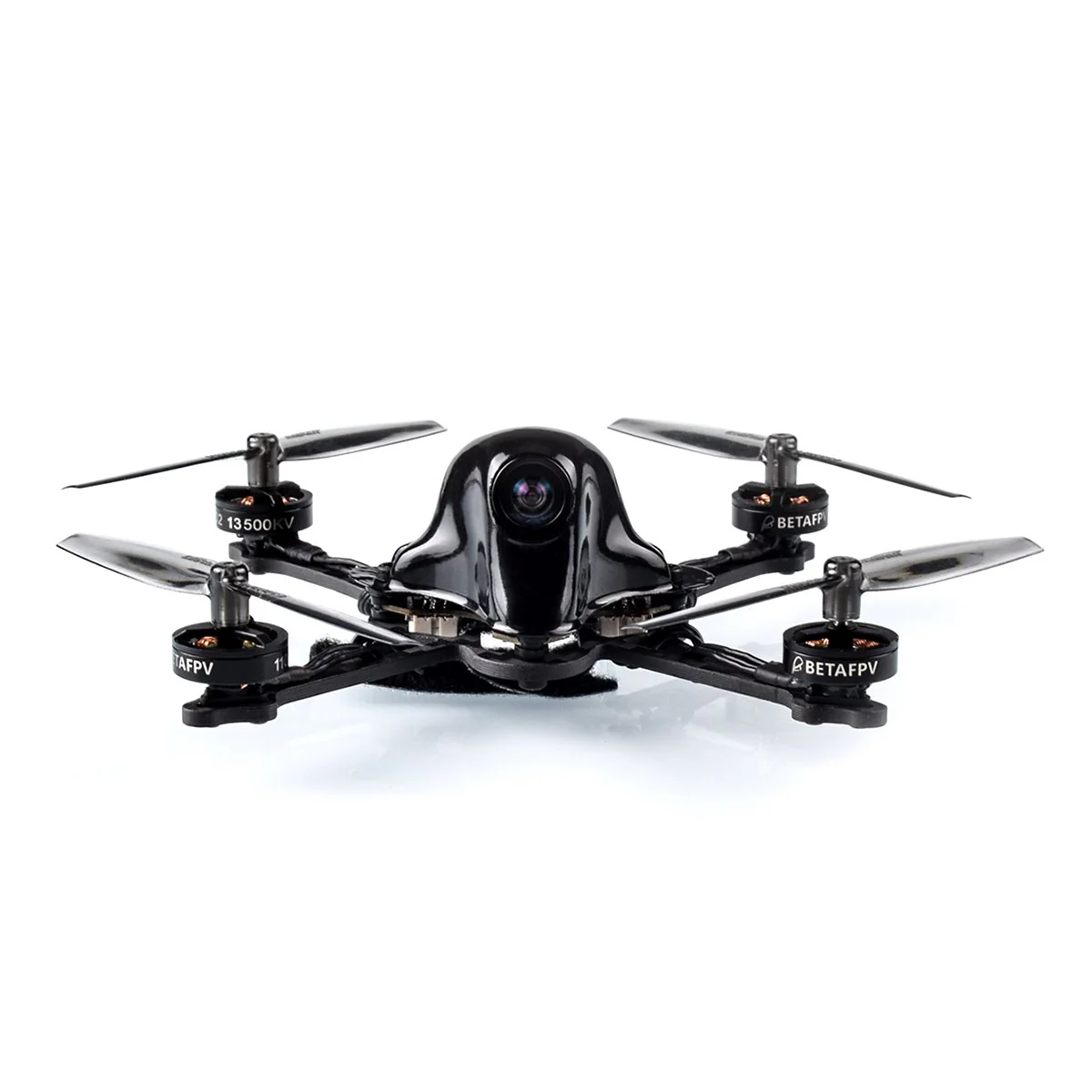

HX100 SE FPV Quad

We are sorry to announce that HX100 SE FPV Quad is discontinued and will not be available for sales anymore. We recommend you buy its great alternative HX115 115mm HD Toothpick Quad.

Ultralight, quiet and powerful! With the tiny design of a 100mm wheelbase and the BT2.0 300mAh 1S battery, this small body contains incredible energy! Come with the brand-new F4 1S AIO FC, which integrates the VTX, greatly saves the drone's weight, brings a fast flight experience. This little beast will bring you an unprecedented outdoor flight experience!

Bulet Point

• Uses the lightest F4 1S Brushless AIO FC which weighs 3.8g without a cable. This FC has the efficient STM32F411CEU6 processor and tuned BETAFPVF411(BEFH), which allows for maximum weight savings.
• Equipped with BetaFPV’s exclusively designed BT2.0 connector, it can support 9A continuous current and 15A burst while the PH2.0 connector uses 4.5A continuous current
• The highly efficient combination of the light 1102 13500KV motor and durable 65mm 2- blade props deliver a drone with excellent flight performance and achieves a great noise-reducing function

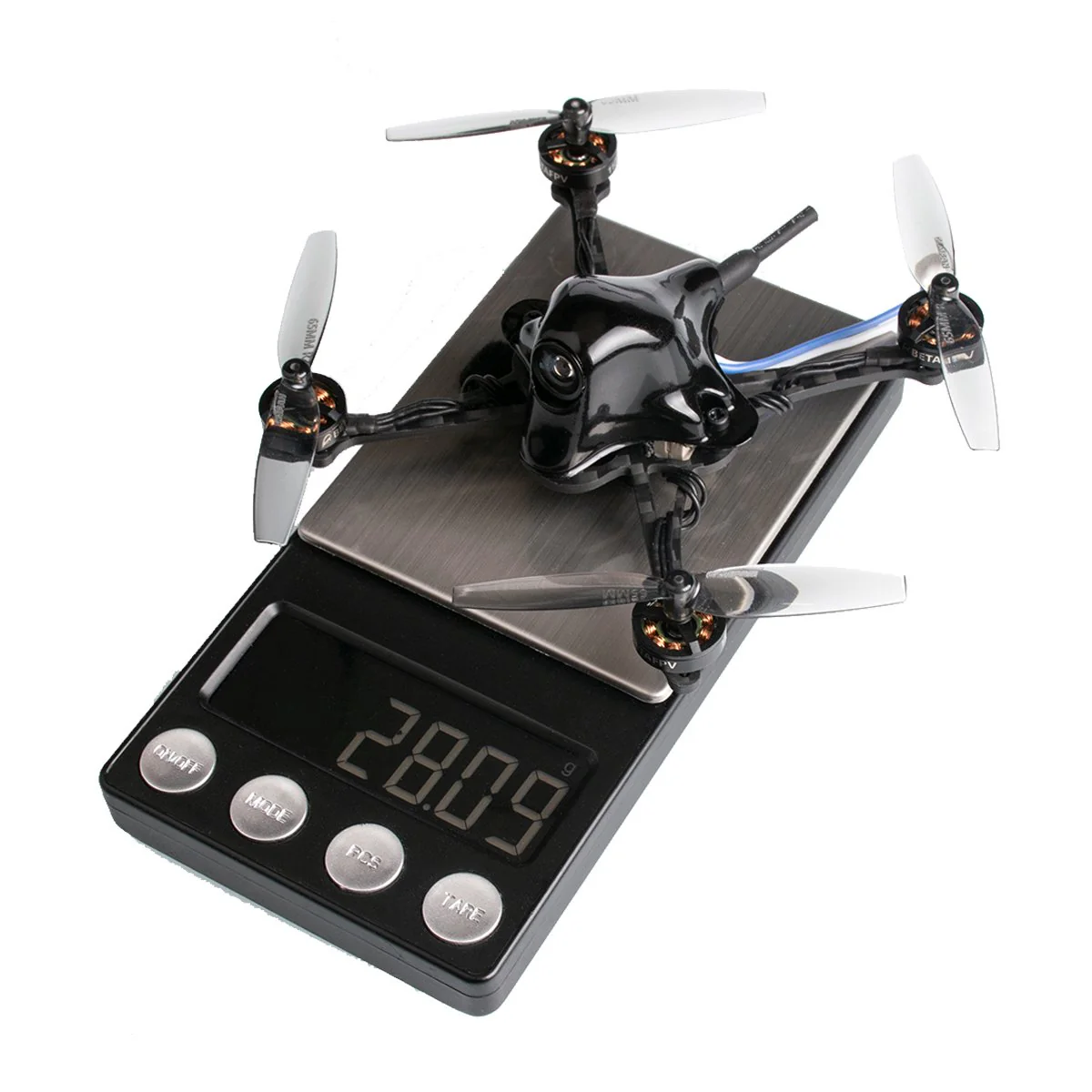

• Super light with a total weight of 28.09g, installed with the customized HX100 SE carbon fiber frame
• The drone comes with BT2.0 - PH2.0 adapter cable in default, which is convenient for customer who uses PH2.0. We also released the BT2.0 tester and charger, its charging current has been upgraded from 0.5A to 1A, which makes the charging speed 2 times faster.

Specification

• Item: HX100 SE FPV Quad
• Weight: 28.09g (without battery)
• FC&ESC: F4 1S AIO FC
• Motors: 1102 13500KV Motors
• Props: Gemfan 65mm 2-blade props(1.5mm shaft hole)
• Camera: C01 Camera
• VTX: Integrates 25mW VTX
• Frame: HX100 SE Carbon Fiber Frame
• Canopy: Canopy for HX100 SE
• Receiver Option: Frsky XM / DSMX / Futaba S-FHSS
• Battery: BT2.0 300mAh 1S Battery
• Flight time: 4 mins in a smooth outdoor flight, 2:30 mins in full throttle outdoor flight

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector has decreased internal resistance of connector effectively allowing more current to be transferred, which means it supports 9A continuous current (15A burst). This means stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A. You can enjoy more flight time without disturb of low voltage warning due to reducing voltage sag. For more instruction, click here to reach.

See the graph below of comparing the BT2.0 connector and PH2.0 connector (solid pin version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this test. The BT2.0 has double the time (about 2 minutes) and a 0.2v improvement in voltage sag.

Much more choices of BT2.0 series accessories.
We know some of pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 connectors for those people who want to convert the PH2.0 connector to BT2.0 connector.

• BT2.0 Connectors (10pcs)
• BT2.0 1S Whoop Cable Pigtail
• BT2.0-PH2.0 Adapter Cable
• BT2.0 Battery Charger and Voltage Tester
• BT2.0 Connector 1S Lipo Charger Board
• BT2.0 300mAh 1S Battery

Flight Controller

F4 1S AIO FC(SPI Rx) integrates 4 components as F411 FC, 5A ESC, 25mW VTX and SPI receiver. It is ultralight only 3.92g and still maintains an amazing performance capability, which makes it become your best choice to run with a 1S brushless quad!

F4 1S AIO FC(No Rx) integrates 3 components as F411 FC, 5A ESC and 25mW VTX. It supports external receivers like TBS Crossfire, Frsky XM+ and Spectrum DSMX etc.

In this quad, the Frsky & Futaba Version is equipped with F4 1S AIO FC(SPI Rx), and the TBS & PNP Version is equipped with F4 1S AIO FC(No Rx) with an external Receiver.

C01 Camera

C01 Camera is the lightweight camera customized for the weight-sensitive micro whoop drones, perfectly fits the Meteor65. Adapted a 1/4'' CMOS sensor, 2.1mm lens for  800TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

The Quad comes with a 25° and 35° camera tilt
mounts, the 35° mount is suitable for high-speed flight, while the 25° mount
is for lower speed flight. SmartAudio is supported.

Note: To change the frequency or output power via remote control, please check the manual Smart Audio. Download the STL file for the customized HX100 SE canopy.

Motor

Customized 1102 13500KV motor - With an ultra-lightweight of 3.01g and
ball bearing technology, the friction is reduced between the bearing
surfaces thus increasing the duration of the motor and improving its
efficiency.

Package

• 1 * HX100 SE FPV Quad
• 1 * BT2.0 300mAh 1S Battery
• 1 * BT2.0-PH2.0 Adapter Cable
