$4.50The Story

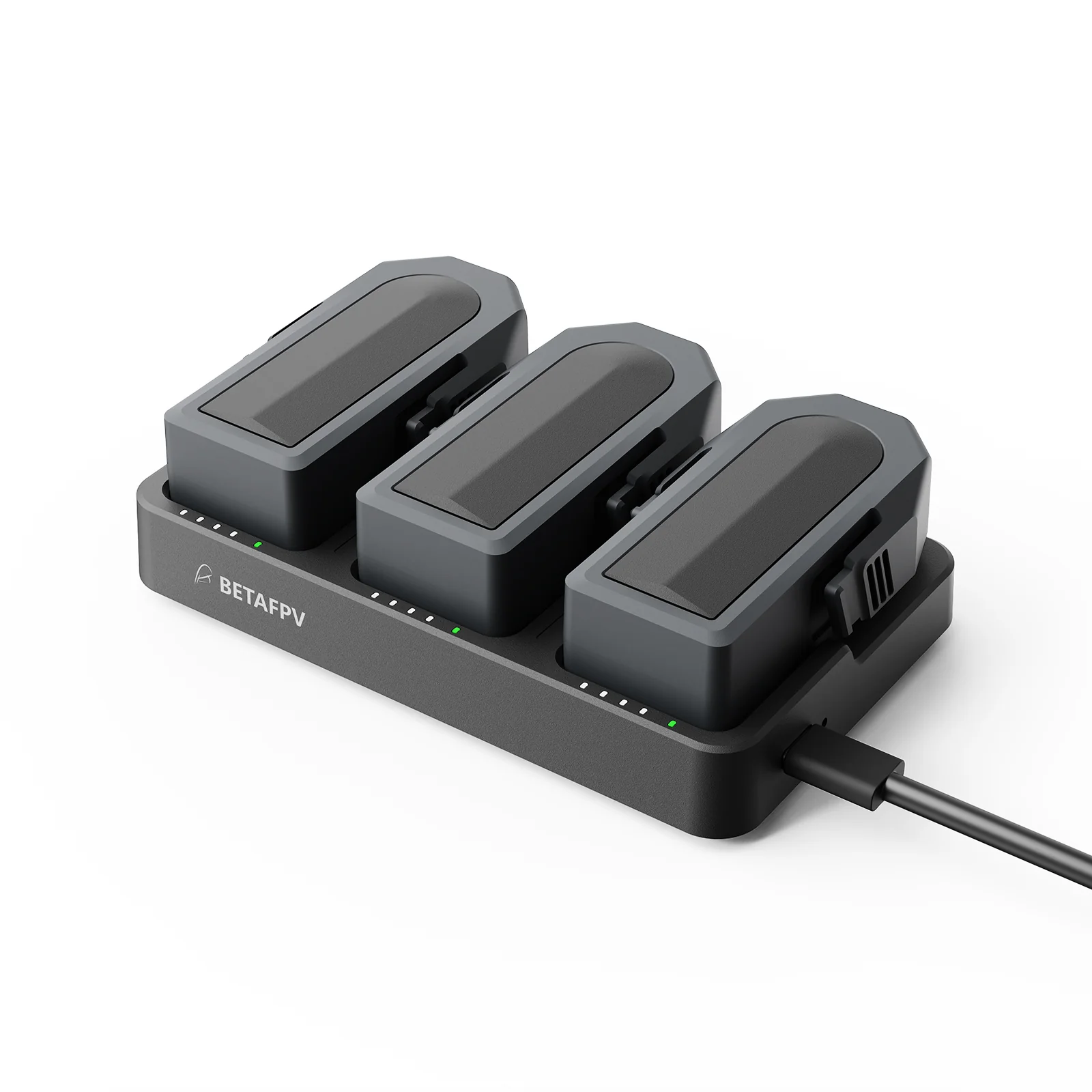

The Aquila20 Three‑Way Charging Hub is designed to keep you flying longer by charging three Aquila20 batteries simultaneously. With PD 3.0 fast charging support, each port delivers up to 15W for a total output of 45W, delivering rapid, efficient power to all your packs. A built‑in smart chip automatically allocates charging port based on the adapter's power and safely powers down when charging is complete. All of this is packed into a compact, travel‑ready hub that lets you power up anywhere.
Bullet Points
- Compact & Portable: Small, travel‑ready design for charging anywhere.
- 45W Total Output: PD 3.0 fast charging with up to 15W per port. Fully charges in 40min.
- Smart Power Distribution: Automatically allocate charging port based on the adapter's power.
- Charge 3 Batteries Simultaneously: Designed specifically for your Aquila20 batteries.
Specifications
- Battery Type: LiHV
- Charging Voltage: 8.7V
- Connector: BT3.0
- Color: Black
- Input Interface: USB Type-C
- Input Voltage Range: 9-20V
- Input Power: Maximum 15W per port, 45W in total
- Input Current: 1.8A
- Charging Protocol: PD3.0
- Weight: 97.5±1.0g
- Dimensions (L×W×H): 119*73.5*19mm
Diagram
Max 45W Total Output
This charger supports PD 3.0 fast charging, delivering up to 15W per port and 45W total output—fully charging three Aquila20 batteries in just 40 minutes. It intelligently allocates charging port based on the adapter's power, maximizing charging speed, efficiency, and safety.
Usage Notes
To charge all three ports simultaneously, use a power adapter with an output of 45W or higher. The charger intelligently manages power based on your adapter’s output:
| Adapter Output | Available Ports |
| 0W - 15W | No charging |
| 15W - 30W | 1 port enabled |
| 30W - 45W | 2 ports enabled |
| >45W | All 3 ports enabled |
LED Indicators
- Status LED on: Charging available
- Status LED off: Charging unavailable
- Orange Warning LED: The power adapter cannot supply enough power to charge at least one battery.
File
User Manual for Aquila20 Three-Way Charging Hub
Recommended Parts
- Quadcopter: Aquila20 FPV Kit, Aquila20 HD FPV Kit
- Battery: Aquila20 Exclusive Battery
Package
- 1 * Aquila20 Three-Way Charging Hub
- 1 * User Manual
